Description

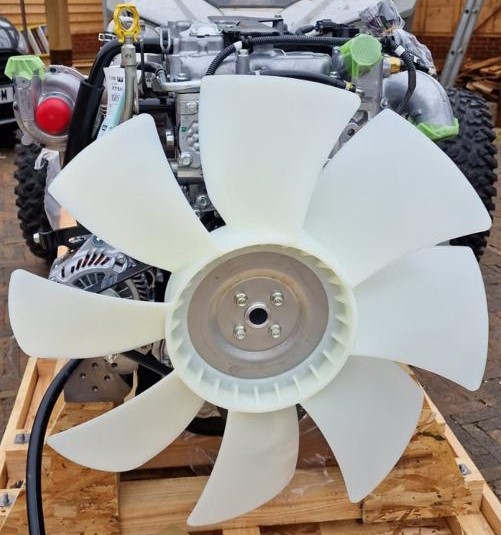

NEW 4JJ1XYBW-01 WITH WARRANTY COMPLETE ENGINE
CAN BE USED FOR THE JS130 JS160 JCB RANGE JUST NEEDS THE FLYWHEEL AND HOUSING STARTER MOTOR AND ALTERNATOR CHANGING OFF THE OLD ENGINE AND SOME TIMES THE SUMP DEPENDING IF THE OLD SUMP HAS OIL INDICATOR ON IT
WE STOCK MANY OTHER COMPLETE NEW ISUZU ENGINES ALSO
Manufacturer ISUZU MOTORS LIMITED
Engine Model Base Model: 4JJ1 (Intercooler turbo) Model No.: AI-4JJ1XYBW-01
Application General power
Emission regulation EPA Tier-3 / EC Stage-lllA
Engine type
No. of cylinders-bore x stroke 4 – 95.4 mm x 104.9 mm
Total piston displacement 2.999 L
Compression ratio 17.5 to 1
Engine performance Rating
Testconditions Standard atmospheric condition
Conforming standard Break-in time 30 hrs
JPN;JIS D0006-1
US;SAEJ1349 With AC generator, without cooling fan
EU;ISO15550
With air cleaner and exh. silencer
* Intake restriction -2.45kPa or less
* Exhaust restriction 13.3kPa or less
Fuel : JPN: JIS-NO.2
Rated Output : 95.0±3% kW / 2500 min-1
Maximum Torque : 408±5%Nm / approx. 2000 min-1
Fuel consumption at rated. : 207±5% g/kw.h
No load max. speed : 2500±10 min-1
Low idle speed : 800±10 min-1
Type of fuel Diesel fuel only ( JPN:JIS-NO.2, US:ASTM-2D, EU:EN590 )
Engine dry weight Approx. 320 kg
Dimensions L 977 x W 739 x H 842 ( With cooling fan )
Firing order 1 – 3 – 4 – 2
Rotating direction Clockwise viewed from cooling fan
Valve device Overhead valve
Four cycle, water cooled, overhead valve, vertical in-line,
direct injection type
